thermo 熱探 TP5C 防爆安全溫度計（美國） 型號:TPF1-TP-5C（23M） 庫號：M306339

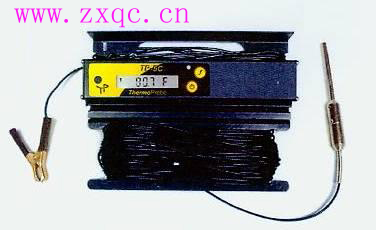

TPF1-TP-5C（23M）型防爆安全溫度計

安全等級:EEx ib IIB T4
溫度范圍:-40℃-204℃
精度:±0.2
電池類型:2AAA
可配電纜長度:23m

產品相關視頻

產品相關說明書



The TPF1-TP-5C has all of the best qualities of the old TPF1-TP-5 and incorporates the latest and most reliable technology into its electronics and probe assembly. Many customers have used the TP-5 over the years and have wanted to have a more robust and powerful version. You will truly appreciate the improvements found in the TPF1-TP-5C.

The TPF1-TP-5C employs the proven RTD sensor design that has been used in the TPF1-TP-7 and TPF1-TP-8 for many years. A sealed industrial quality overlay now provides a user interface that is easy to use with gloves. A sealed, anodized aluminum enclosure protects the circuit board and large LCD from penetration by impact, water, and reactive liquids. An auto-off feature has been added to save battery life.

The new TPF1-TP-5C circuit board is an evolutionary step up from our highly accurate, reliable and successful TL-1 laboratory thermometer. The Power Button's primary function powers the instrument for intervals of about 20 minutes since the last button was accessed. The Power Button can also be used to conserve power and clear the memory, or to make adjustment while in calibration mode. A simple menu operation is displayed by holding the Function Button, and alternay functions to allow adjustments in the calibration mode. Arrows on the left side of the display show the direction of the temperature reading and whether stability has been reached. At the user's discretion stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for the user's documenting purposes. But this feature never interferes with simply getting an accurate temperature reading.

To endure the environment and be intrinsically safe, the TPF1-TP-5C is manufactured of materials, which are both immune to petrochemicals and are non-sparking. The probe assembly is constructed with a static-dissipating, non-stick cable, with stainless steel sensor components.


Operational Attributes:


Easily replaceable AAA Batteries, provides an estimated *100 hours operation. Circuit logic automatically indicates low battery condition, automatically shuts off after twenty minutes, shows temperature trend and stabilization, displays error codes for failure determination. The low power backlight for night operation is photo sensor controlled for convenience and battery conservation. In nighttime conditions the backlight illuminates the display. Celsius or Fahrenheit units with C/F indication can be easily chosen from the Function Button. User Manual explains intuitive calibration procedure that can be done through the external faceplate buttons.


75' （23m） TPF1-TP-5C, Standard Weight Probe

分類:,優勢,囯際直購

產品更多信息


熱探頭TP5C防爆安全溫度計(美國)型號:TPF1-TP-5C(23M)庫號:M306339
TPF1-TP-5C(23M)防爆安全溫度計
安全等級:eexibi iibt4
溫度范圍:-40℃-204℃
精度:& plusmn0.2
電池類型:2AA
電纜長度:23m

產品相關視頻

產品相關說明




TPF1-TP-5C具備舊TPF 1-TP-5的所有較佳品質，并將較新、較可靠的技術融入其電子和pr obe組件。許多客戶多年來一直在使用TP-5，并希望有一個更強大的版本。您將真正欣賞TPF1-TP-5C中的改進。

TPF 1-TP-5C采用久經考驗的RTD傳感器設計，多年來一直用于TPF1-TP-7和TPF1-TP-8。現在，一個密封的工業質量覆蓋層提供了一個易于與手套一起使用的用戶界面。密封陽極氧化鋁外殼保護電路板和大型液晶顯示器免受沖擊、水和活性液體的滲透。增加了自動關閉功能，以節省電池壽命。

新的TPF1-TP-5C電路板是我們高度精確、可靠和成功的TPF1實驗室溫度計的進化升級。電源按鈕的主要功能是自較后一個按鈕被訪問后，每隔約20分鐘給儀器供電。電源按鈕也可用于省電和清空存儲器，或者在校準模式下進行調整。按住功能按鈕可顯示一個簡單的菜單操作，并交替顯示允許在校準模式下進行調整的功能。顯示屏左側的箭頭顯示溫度讀數的方向以及是否達到了穩定性。根據用戶的判斷，穩定的溫度可以記錄在多個液位上，以避免運行，然后顯示出來，以供用戶記錄。但是這一特性絕不會干擾簡單地獲得精確的溫度讀數。[/ br/]
為了耐受環境和本質安全，TPF1-TP-5C由對石化產品免疫且不發火花的材料制成。探頭組件由防靜電不粘電纜構成，帶有不銹鋼傳感器組件。


操作屬性:


易于更換的AAA電池，估計可運行100小時。電路邏輯自動指示低電量狀態，二十分鐘后自動關閉，顯示溫度趨勢和穩定性，顯示錯誤代碼以確定故障。夜間操作的低功率背光由光電傳感器控制，以方便和節省電池。在夜間條件下，背光照亮顯示器。可以從功能按鈕中輕松選擇帶有碳/氟指示的攝氏或華氏單位。用戶手冊解釋了可以通過外部面板按鈕完成的直觀校準程序。



75 '(23m)TPF 1-TP-5c，標準重量探測器

類別:，優勢，

更多產品信息
